LYNCCN BCY55.88 V12 Single V Die Press Brake Tooling with 42CrMo Material and Induction Hardening
تفاصيل المنتج
| اسم المنتج | أدوات مكابح الضغط LYNCCN BCY55.88 V12 المفردة على شكل حرف V | V- فتح | V12 |
|---|---|---|---|
| المعالجة الحرارية | تصلب الحث | زاوية | 88 درجة |
| الأعلى. حمولة | 100 طن/م | صلابة | HRC53±2 |
| مادة | 42CrMo | التعبئة | صندوق خشبي |
| عرض | 20 ملم | ارتفاع | 75 ملم |
| إبراز | LYNCCN BCY55.88 V12 press brake tooling,single V die press brake punch,V12 press brake tool with warranty,single V die press brake punch,V12 press brake tool with warranty |
||
منتوج وصف

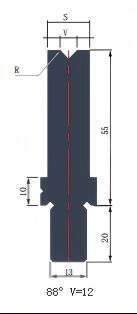

LYNCCN BCY55.88 V12 Single V Die Press Brake Tooling
Product Overview
A press brake die is an essential tool used in press brake machines to bend sheet metal into precise angles and shapes. This tooling system consists of a punch (upper tool) and a die (lower tool) that work in tandem to form metal components. Different die configurations enable various bending techniques including V-bending, U-bending, and hemming operations.
This product is a single V die designed for CNC Press Brake applications, compatible with CNC Hydraulic Press Brake systems and Hydraulic Press Brake Machines.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Press Brake Single V Die |
| V-opening | V12 |
| Angle | 88° |
| Width | 20mm |
| Height | 75mm |
| Material | 42CrMo |
| Length | 550mm/500mm |
| Hardness | HRC53±2 |
| Heat Treatment | Induction Hardening |
| Max. Load | 100T/M |
| Packing | Wooden Box |
Standard Segmentation Options
500mm Length
1000mm Length
1100mm Segmentation
Industry Applications
Our hydraulic CNC press brake tooling is engineered for diverse industrial applications and scenarios. These precision tools are extensively used in metalworking and fabrication industries for bending and shaping metal sheets with exceptional accuracy.
Compatible with a wide range of press brake machines, our products serve critical functions across multiple sectors including aerospace, automotive manufacturing, construction equipment, and shipbuilding industries.
Application Examples
